Indoor LED Screen
Description
Why Choose Us
P1.86 Indoor LED Screen details
Product Description
P1.86 Indoor LED Screen details
P1.86 Indoor LED Screen manufacture

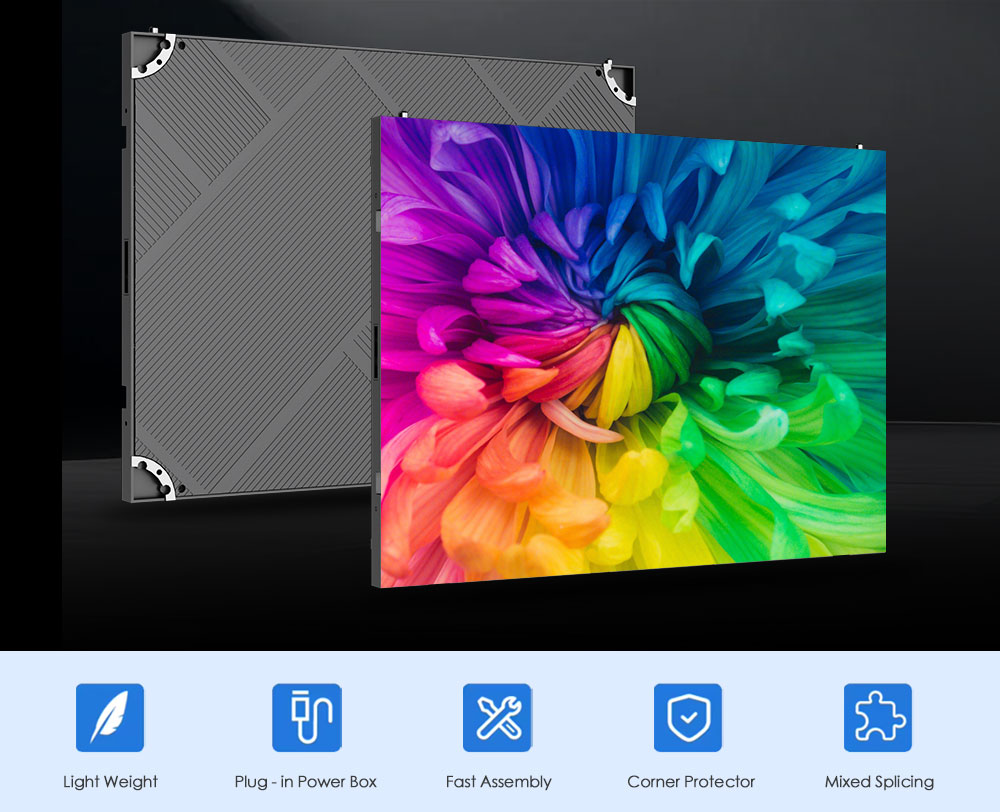

Features

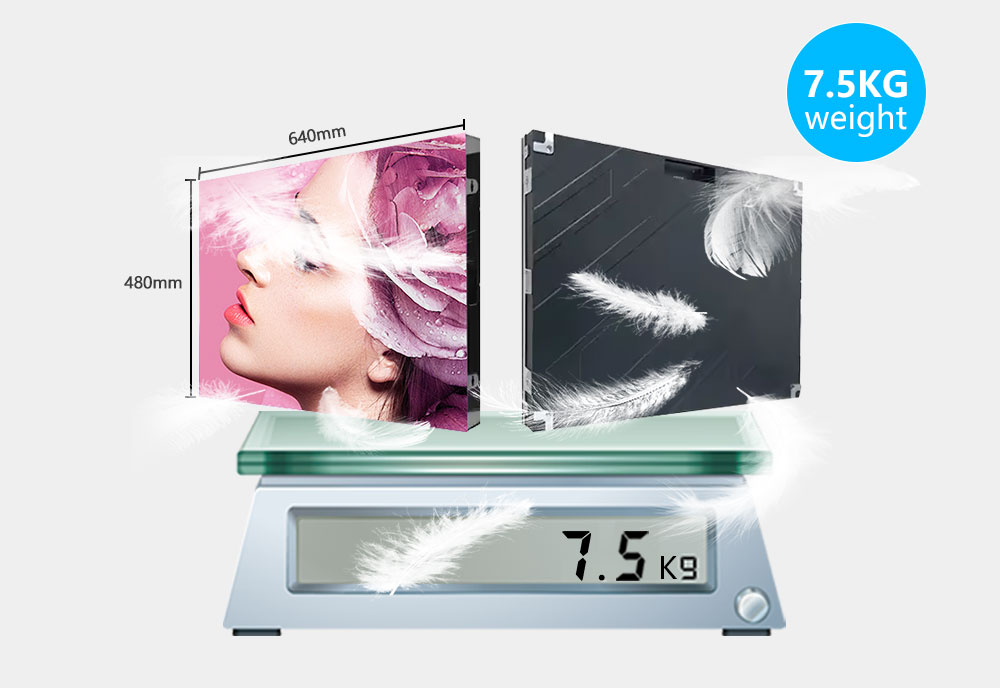

1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience. 2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows 3. Light Weight: The cabinet uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive. 4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble. 5. Easy Setup: Back modules are made easier for connection. 6. Totally front service design. Saving space and maintenance cost.

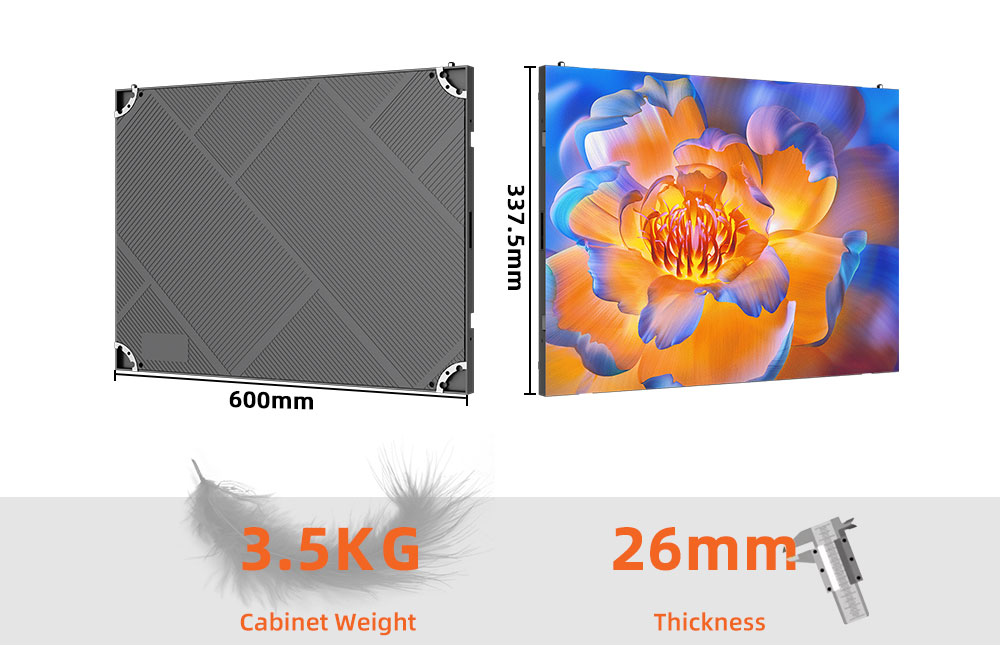

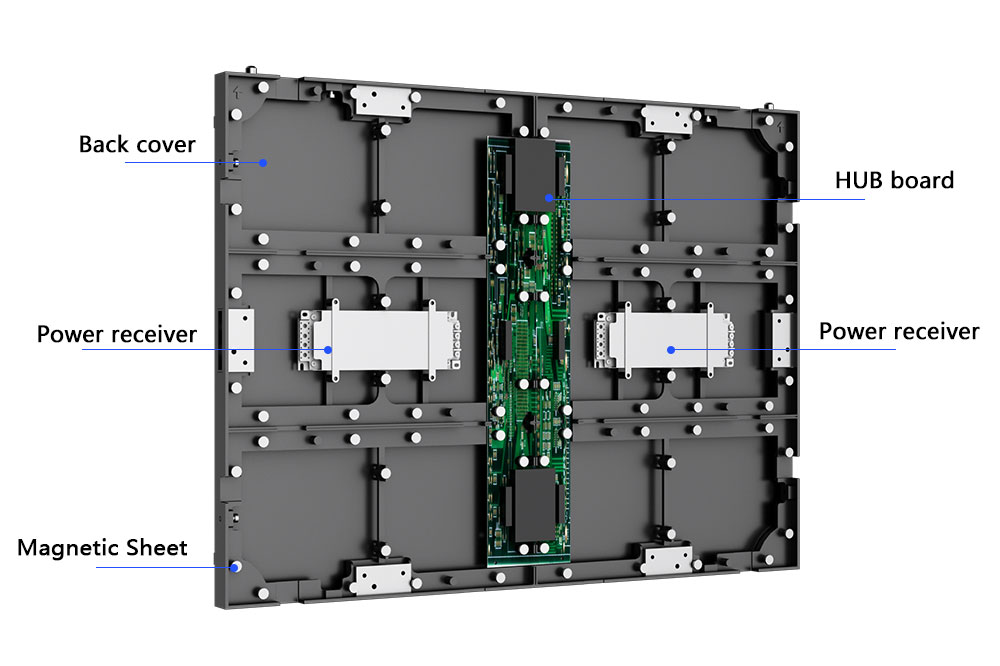

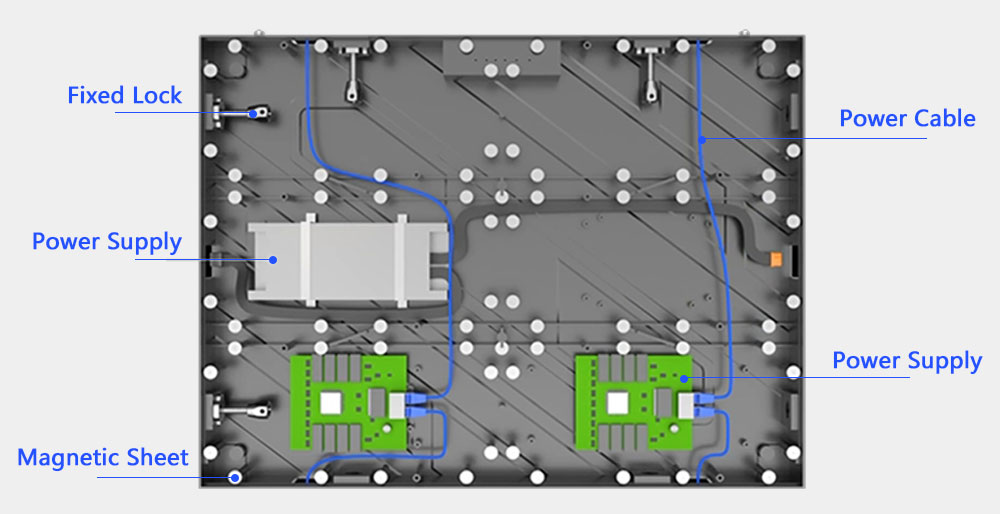

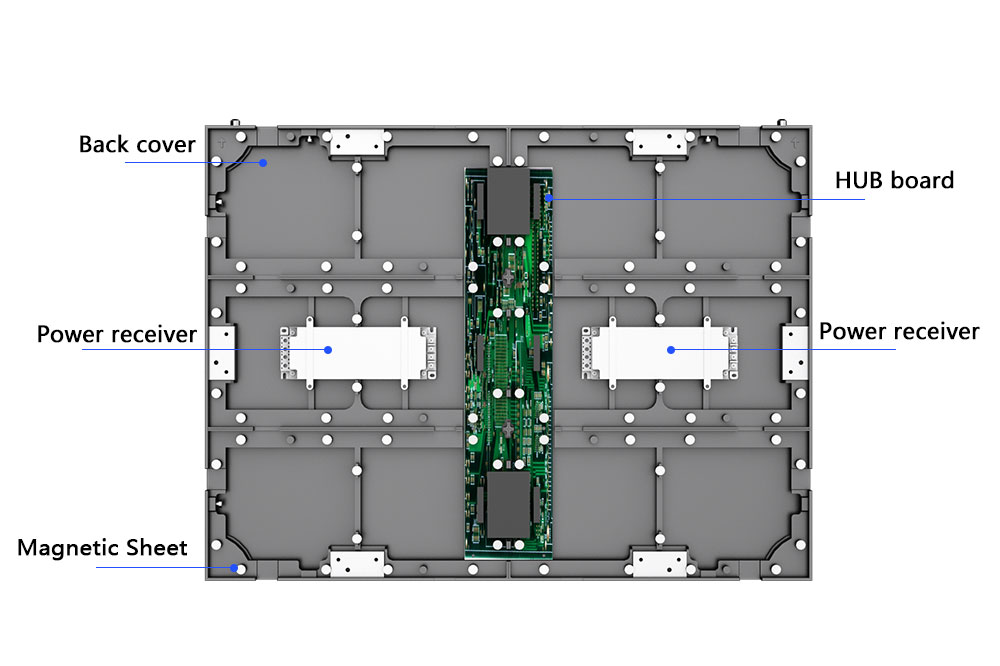

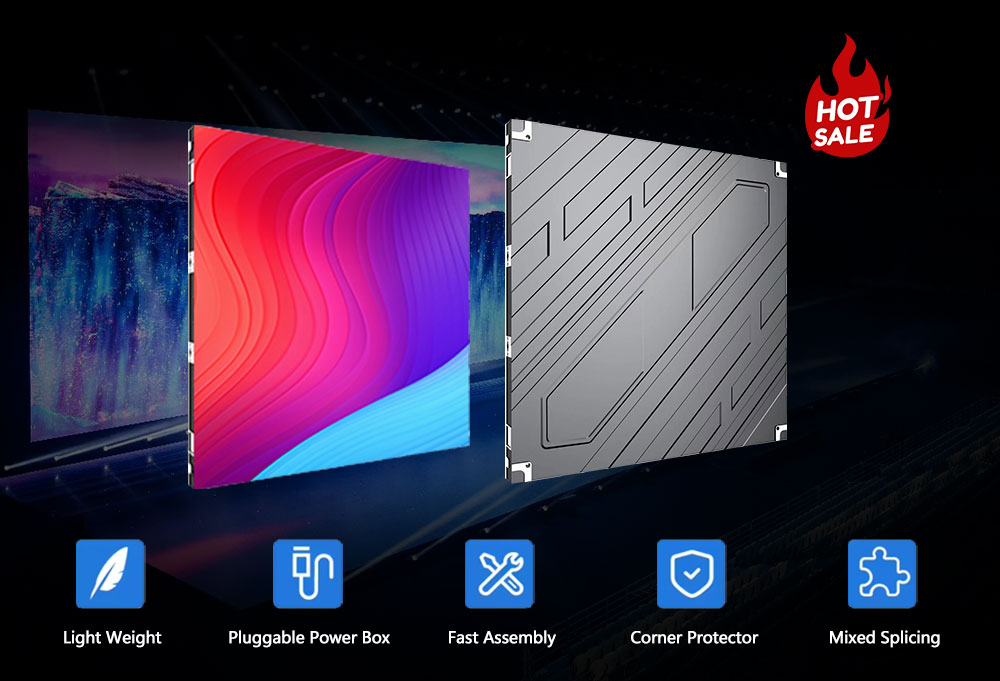

Aluminum Cabinet Details
P1.86 Indoor LED Screen details

Product Features

1.Module size:320x160mm, Cabinet size:640*480mm. compatible pitch: P1.25/1.53/P1.86/P2/P2.5.
2.Cabinet horizontally and vertically seamless splicing, effectively reduce the interference of
visual gap, complete and coherent display performance .
3.Great display performance even at a short distance viewing.
4.16-channel Constant Current Driving IC, better gray scale level.
5.High refresh rate. Nature gray scale shifting, reduce shooting stripes effectively.

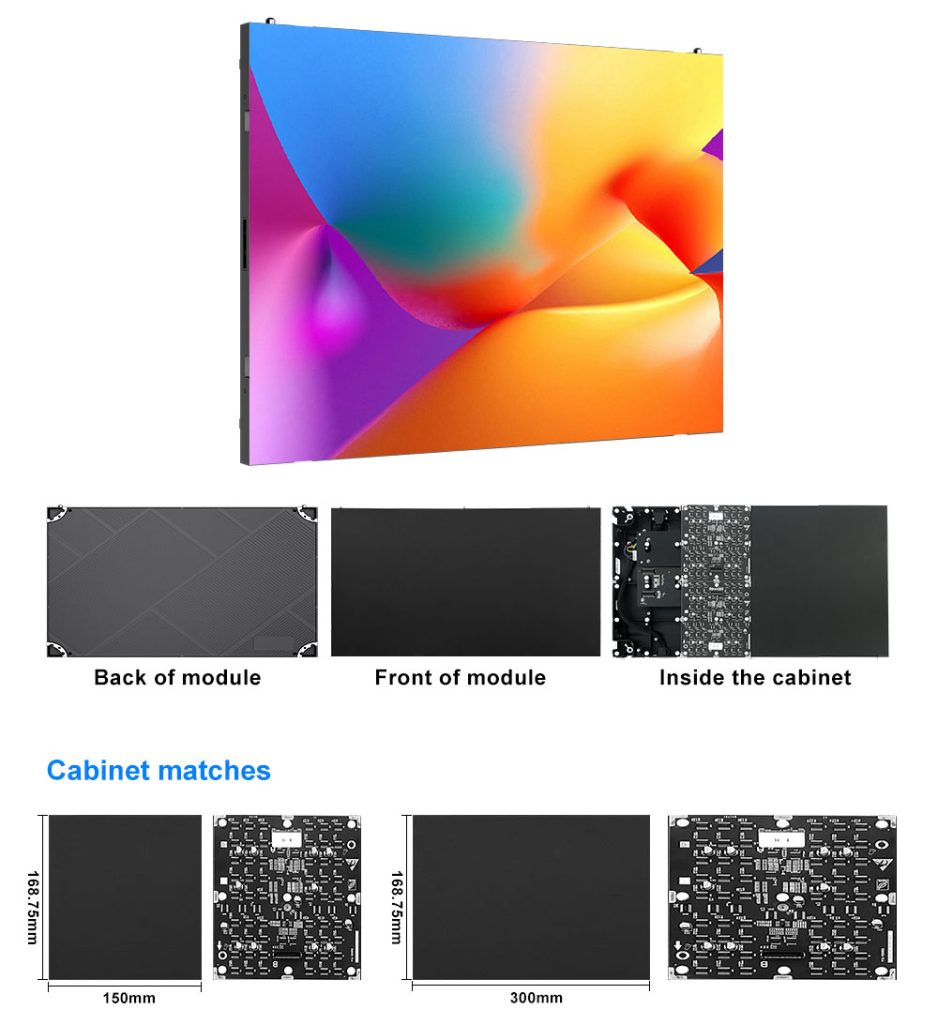

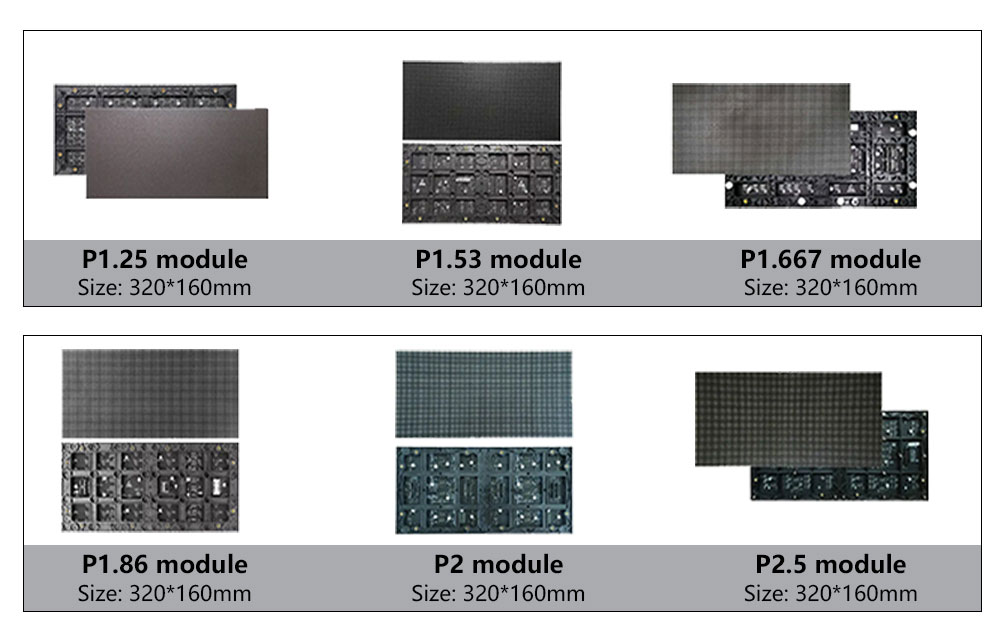

LED Module Style
P1.86 Indoor LED Screen supplier

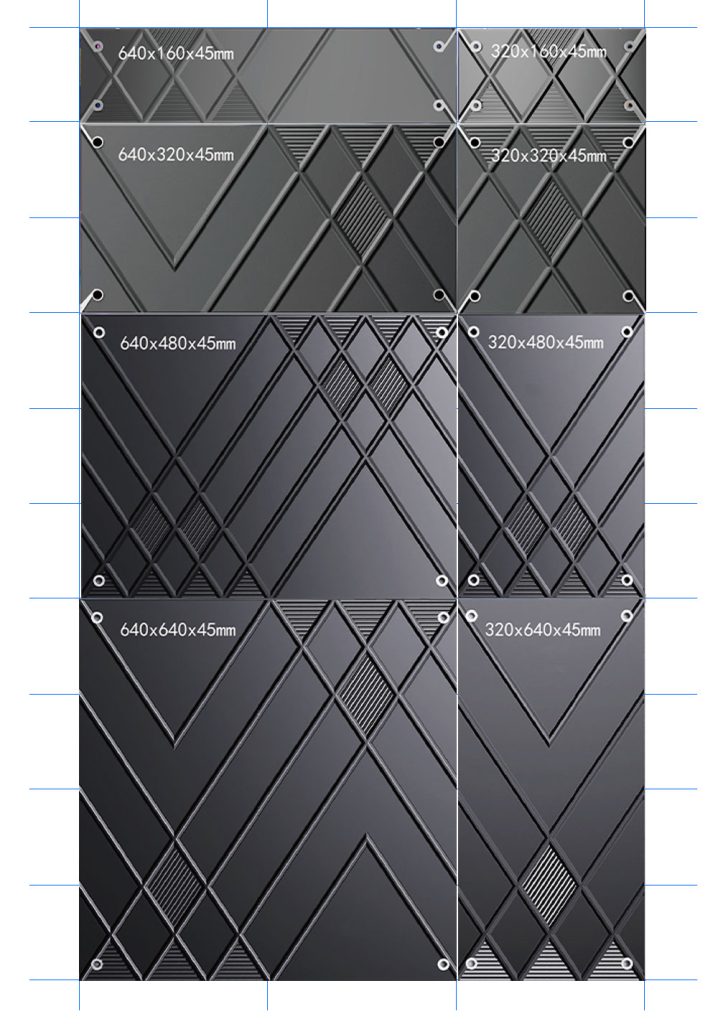

Die casting aluminum panel

* Panel Size: 640*480mm/640*640mm
* High brightness 3840Hz refresh rate.
* Nova star/Colorlight/Linsn control system indoor outdoor led screen
* Specially use for TV studio, conference center,monitoring center and cinema, museum, ect.
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.
Product Paramenters
Parameter
Product Name
P1.25
P1.53
P1.86
P2
Pixel composition
1R1G1B
1R1G1B
1R1G1B
1R1G1B
LED encapsulation
SMD1010
SMD1212
SMD1515
SMD1515
Density of pixel/(dots/m2)
640000 dot/㎡
422753 dot/㎡
289050 dot/㎡
250000 dot/㎡
Brightness
500-1200nits
500-1200nits
500-1200nits
500-1200nits
Size of module (mm*mm)
320mm*160mm
320mm*160mm
320mm*160mm
320mm*160mm
Cabinet size
640mm*480mm
640mm*480mm
640mm*480mm
640mm*480mm
Drive Method
1/64Scan
1/52Scan
1/43Scan
1/40Scan
Best viewing angle (Horizontal/Vertical)
H: 160°; V:160°
H: 160°; V:160°
H: 160°; V:160°
H: 160°; V:160°
Refresh rate
7680HZ
3840HZ
3840HZ
3840HZ
Blind Spot Rate
<0.000001
<0.000001
<0.000001
<0.000001
Grey scale
16 bits per color
16 bits per color
14 bits per color
14 bits per color
P1.86 Indoor LED Screen details
P1.86 Indoor LED Screen manufacture

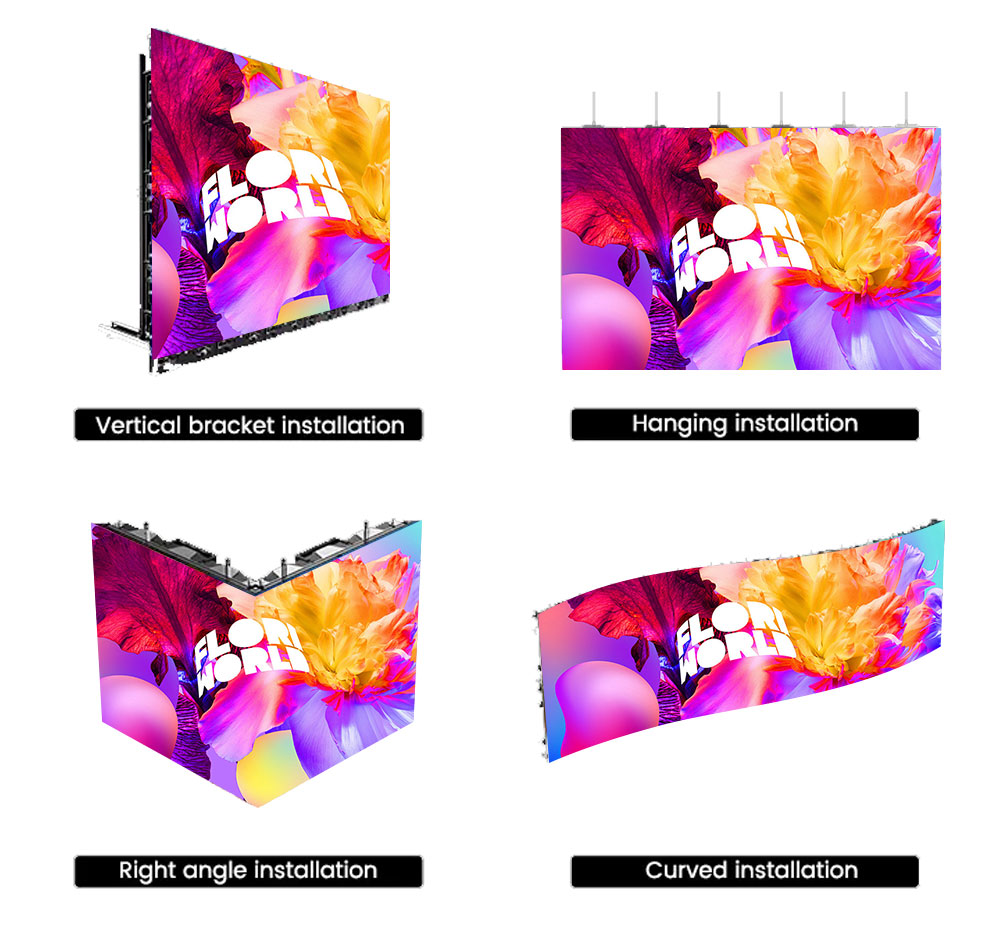

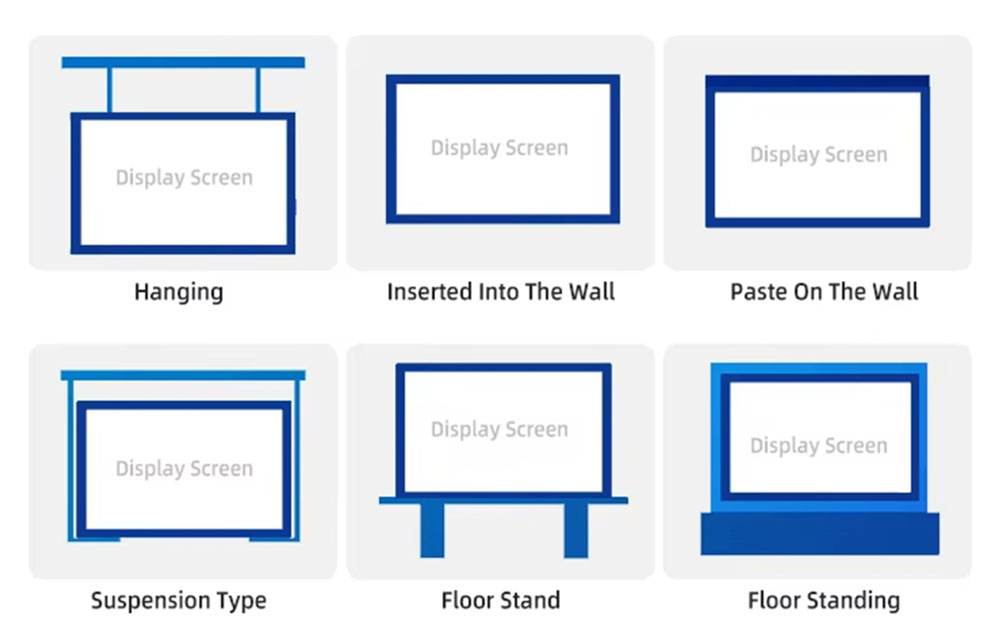

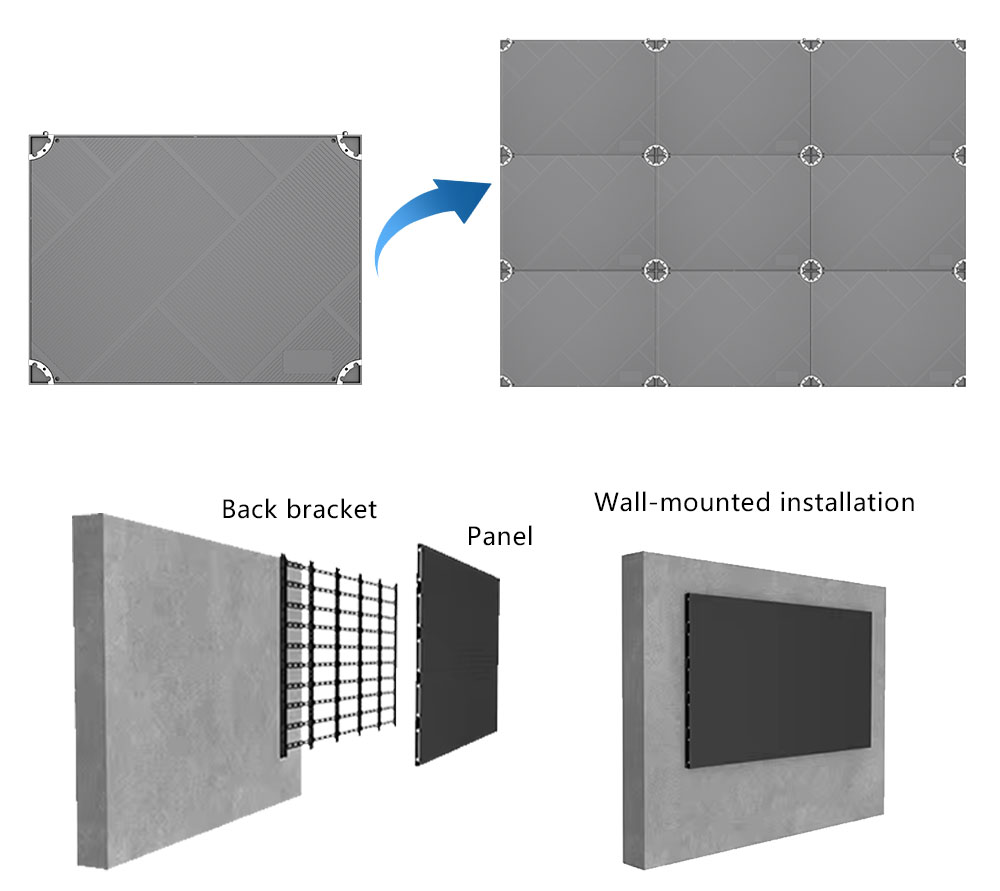

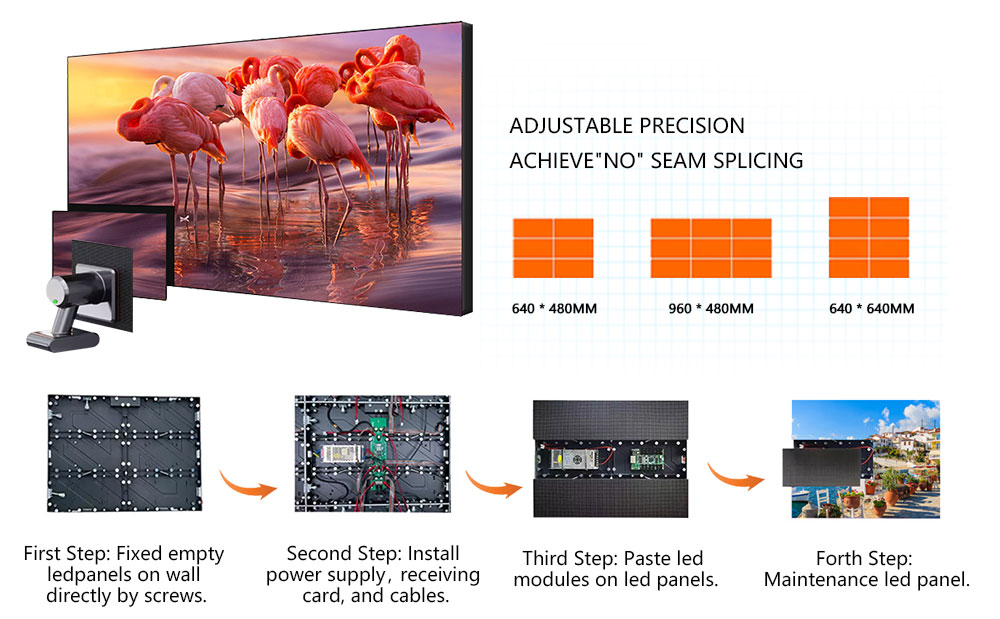

Installation Process
P1.86 Indoor LED Screen manufacture

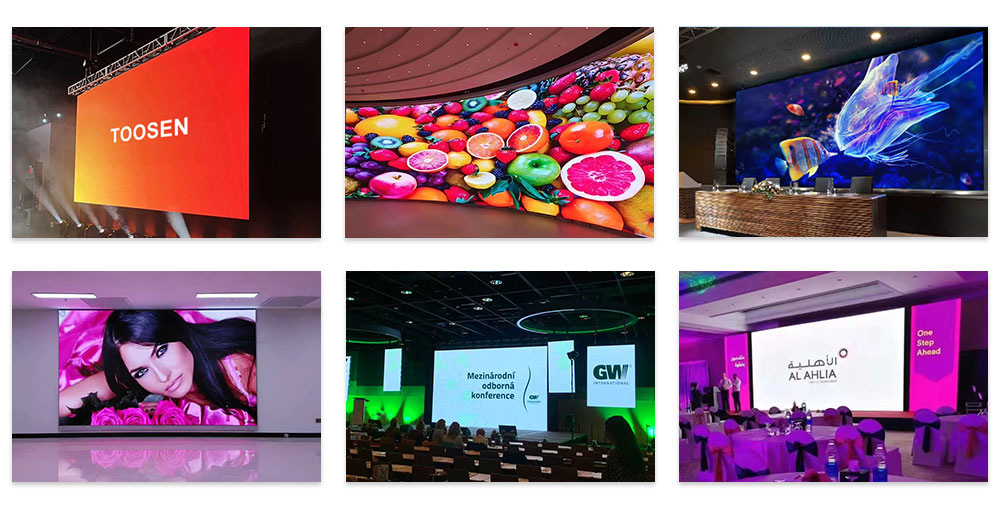

Application
P1.86 Indoor LED Screen factory
P1.86 Indoor LED Screen supplier
P1.86 Indoor LED Screen manufacture
Company Profile
P1.86 Indoor LED Screen supplier
P1.86 Indoor LED Screen factory
P1.86 Indoor LED Screen factory
P1.86 Indoor LED Screen details
P1.86 Indoor LED Screen details
P1.86 Indoor LED Screen manufacture
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer ，which has specialized in led display industry for more than 7years.
Q1:How does your factory do regarding quality control?
A1.The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail
lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every
customer.
Q1:What is your MOQ?
A1.Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q1.How about your Warranty term?
A1. Calculated from the goods to the customer, the warranty period is 2 years, don’t worry, there is a problem with the module,
you can send it back to Shenzhen for repair.
Q1:When will you make the delivery?
A1.We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the
size and quantities of your order.
Q1. your nearest shipping port
A1.Shenzhen
