P2.5 Curve Led Display Screen

Application:Indoor
Color:1R1G1B
LED Module Size::240X120mm/ 320x160mm
Supplier Type:Original manufacturer, ODM, Other, OEM
Place of Origin:China
Model Number:P1.2/ P1.5/ P1.8/ P1.9/ P2/ P2.5/ P3/ P4/ P5
Use:advertising publish, welcome display,Meeting rooms, shopping malls,Concerts, Churches, Exhibitions.
Pixel Pitch:1.2mm/ 1.5mm/ 1.8mm/ 1.9mm/ 2mm/ 2.5mm/ 3mm/ 4mm/ 5mm/
Specification:Custom
Product name:Flexible LED screen
Refresh rate:≥3840Hz-7680hz
Control system:Synchronous/ Asynchronous control system

Inquiry now

Description
More Products
Inquiry

Description

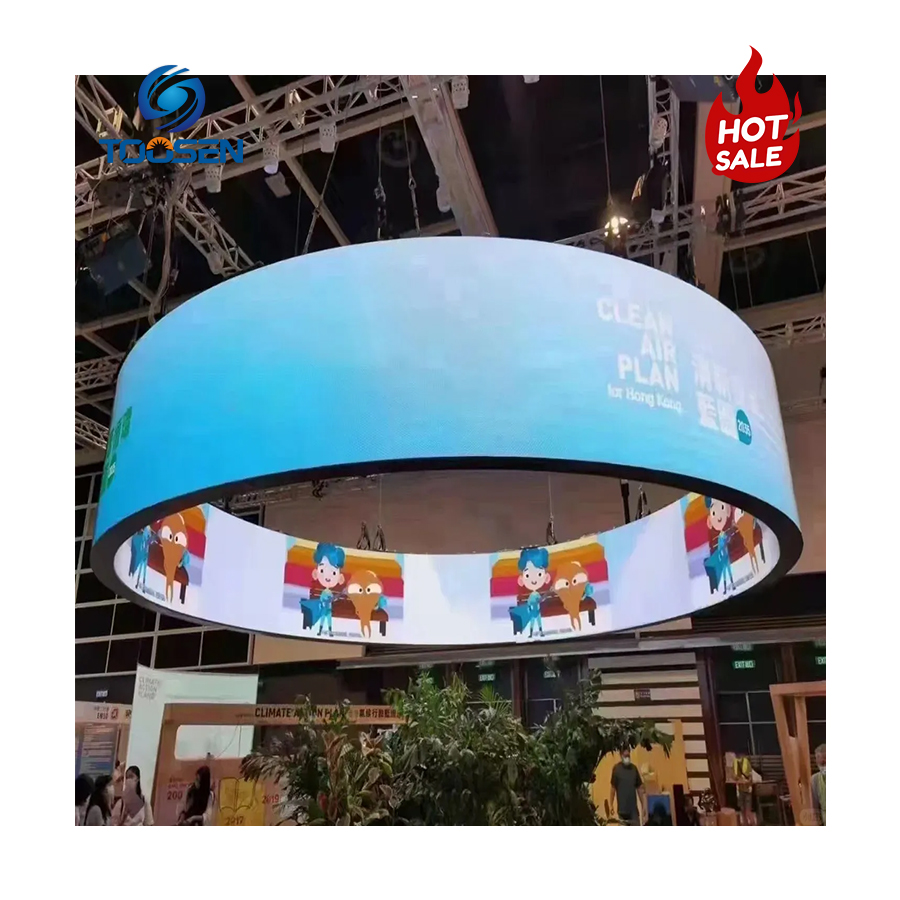

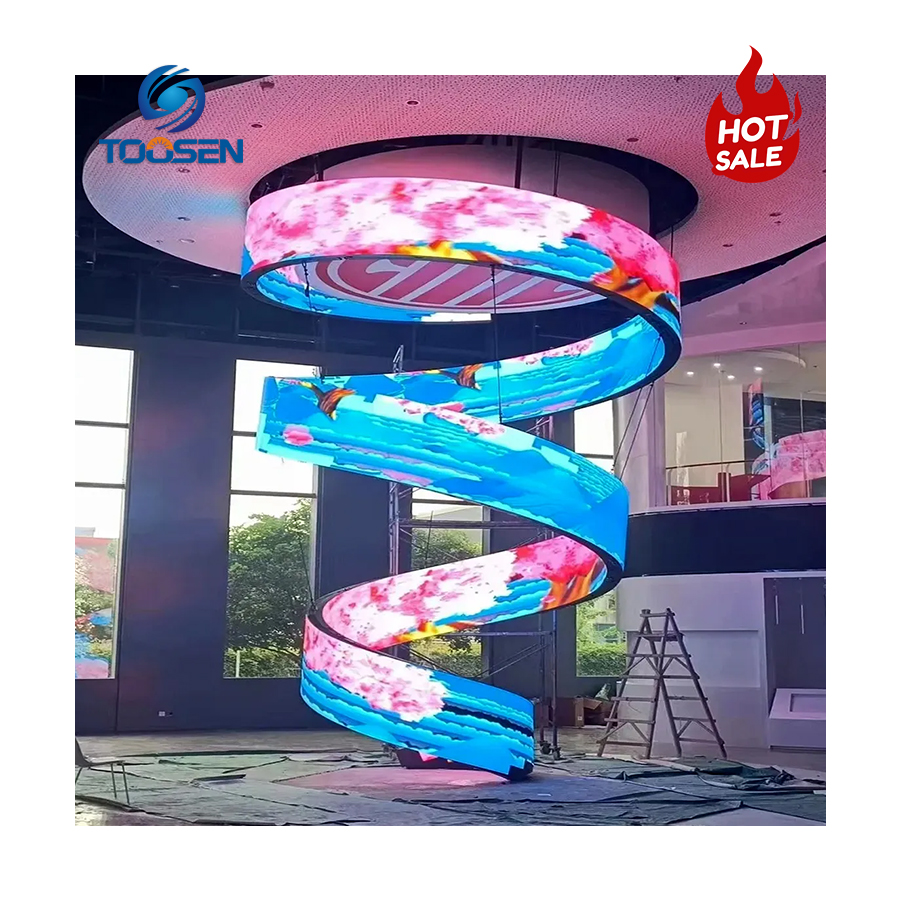

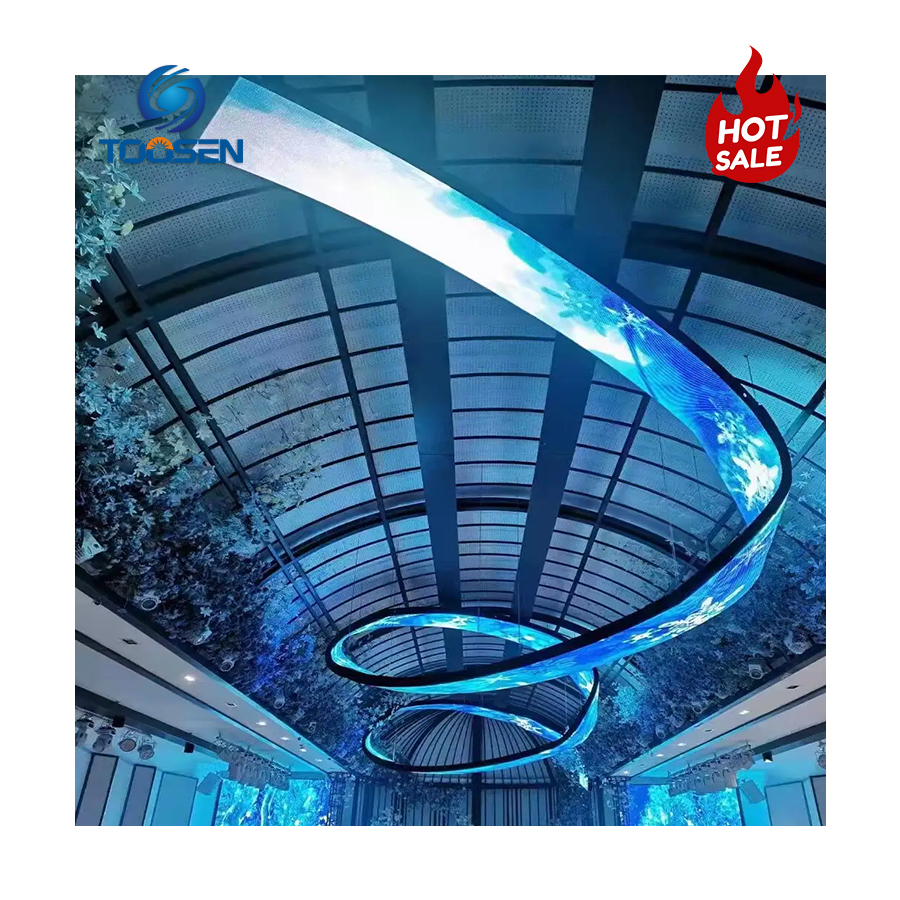

Product Case

P2.5 Curve Led Display Screen manufacture

Product Paramenters

Item	P1.25	P1.56	P1.667	P1.86	P1.875
Pixel Pitch	1.25mm	1.56mm	1.667mm	1.86mm	1.875mm
Modules size	320x160mm	200x150mm	200x150mm	320x160mm	240x120mm
Pixel Density	640000dots/sqm	410913dots/sqm	359856dots/sqm	289050dots/sqm	284444 dots/sqm
Scan mode	1/64 Scan	1/52 Scan	1/45Scan	1/43 Scan	1/32 Scan
Best Viewing Distance	1-50m	1-50m	1-50m	1-50m	1-50m
Best Viewing Angle	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°
Avergage Power Consumption	300W/sqm	300W/sqm	300W/sqm	300W/sqm	300W/sqm
Working Temperature	0°C~+50°C	0°C~+50°C	0°C~+50°C	0°C~+50°C	0°C~+50°C
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Control System	Synchronous control system	Synchronous control system	Synchronous control system	Synchronous control system	Synchronous control system
Life Span	100.000 Hours	100.000 Hours	100.000 Hours	100.000 Hours	100.000 Hours

Item	P2	P2.5	P3	P4	P5
Pixel Pitch	2mm	2.5mm	3mm	4mm	5mm
Modules size	320x160mm	320x160mm	240x120mm	256x128mm	320x160mm
Pixel Density	250000 dots/sqm	160000 dots/sqm	111111 dots/sqm	62500dots/sqm	40000dots/sqm
Scan mode	1/40 Scan	1/32 Scan	1/32 Scan	1/16 Scan	1/16 Scan
Best Viewing Distance	2-50m	2-50m	3-50m	4-50m	5-50m
Best Viewing Angle	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°	Horizontal: 120° Vertical: 120°
Avergage Power Consumption	300W/sqm	300W/sqm	300W/sqm	300W/sqm	300W/sqm
Working Temperature	0°C~+50°C	0°C~+50°C	0°C~+50°C	0°C~+50°C	0°C~+50°C
Refresh Rate	3840Hz	3840Hz	1920Hz	1920Hz	1920Hz
Control System	Synchronous control system	Synchronous control system	Synchronous control system	Synchronous control system	Synchronous control system
Life Span	100.000 Hours	100.000 Hours	100,000 Hours	100,000 Hours	100,000 Hours

Application

Company Profile

FAQ:

Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer ，which has specialized in led display industry for more than 7years.
Q1:How does your factory do regarding quality control?
A1.The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail
lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every
customer.
Q1:What is your MOQ?
A1.Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q1.How about your Warranty term?
A1. Calculated from the goods to the customer, the warranty period is 2 years, don’t worry, there is a problem with the module,
you can send it back to Shenzhen for repair.
Q1:When will you make the delivery?
A1.We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the
size and quantities of your order.
Q1. your nearest shipping port
A1.Shenzhen
